Zebra DS3608-ER / DS3678-ER Long-Range Scanner

The reliable Zebra DS3608-ER/DS3678-ER barcode scanners allow you to read 1D and 2D barcodes from very long distances - from 7.6 cm to up to 20 meters. The 3600 Ultra-Rugged Series launched in 2016 and have continued to empower users around the world with multiple, innovative, iterations since its original introduction. To continue this empowerment fueled by innovation, we are pleased to announce an industry-first addition to the beloved 3600 Series product family – DS3600-XR!

Manufacturer: Zebra

Zebra technologies

Zebra · Barcode scanners · DS3600 Ultra-Rugged Series

Reads from 7.6 cm up to 21.4 m

Zebra DS3608-ER / DS3678-ER – long-range barcode scanner

The extended-range models in Zebra’s ultra-rugged DS3600 series read 1D and 2D barcodes both up close and from the top racking level, without the operator leaving the forklift. They read damaged, dirty and poorly printed labels and handle 3 m drops onto concrete. Choose the corded DS3608-ER or the cordless Bluetooth DS3678-ER.

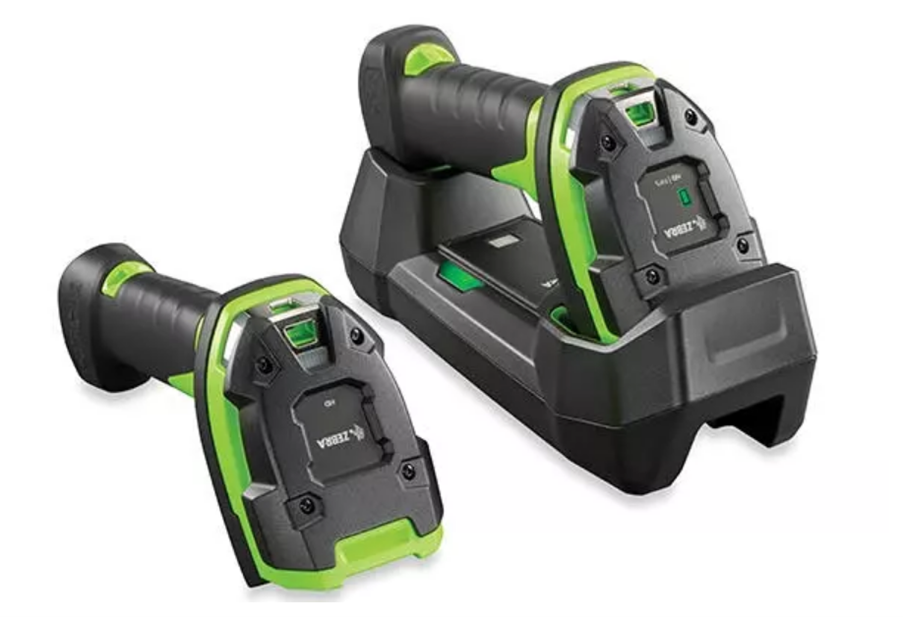

Zebra DS3608-ER corded and DS3678-ER cordless long-range barcode scanners
21.4 mmaximum read range
3 mdrops onto concrete
IP65/IP67dust and water sealed
1D + 2Dnear and far in one scanner

DS3608-ER or DS3678-ER?

Corded

Zebra DS3608-ER

For fixed workstations, packing tables and forklifts with a permanent connection to the vehicle computer.

  • USB, RS-232, Keyboard Wedge, IBM 46xx
  • No battery to charge or replace
  • Operating temperature down to −30 °C
Cordless · Bluetooth

Zebra DS3678-ER

Freedom of movement around the warehouse, yard and freezer – no cable to snag or wear out.

  • Bluetooth with up to approx. 100 m range (line of sight)
  • PowerPrecision+ battery with health monitoring
  • Standard cradle or forklift-mount cradle

Features

Extended read range

Reads barcodes from 7.6 cm up to 21.4 m – from a label in hand to the top shelf of high-bay racking.

PRZM Intelligent Imaging

Zebra’s imaging technology captures damaged, dirty, wrinkled and poorly printed barcodes at first attempt.

Ultra-rugged

Survives 3 m drops onto concrete and 7,500 tumbles. IP65 and IP67 sealed against dust and water.

Built for the cold

Works in freezers and unheated warehouses, where condensation and low temperatures stop ordinary scanners.

Smart battery (DS3678-ER)

PowerPrecision+ battery shows charge level and battery health, so worn batteries are replaced before they fail.

Easy fleet management

Configuration and firmware updates remotely with Zebra’s 123Scan and Scanner Management Service, part of Zebra DataCapture DNA.

Use cases

  • High-bay racking and pallet locations
  • Forklift scanning
  • Goods receiving and dispatch
  • Cold stores and freezers
  • Manufacturing and yard
  • Inventory counts

Technical specifications

SpecificationDS3608-ERDS3678-ER
ConnectionCorded: USB, RS-232, Keyboard Wedge, IBM 46xxCordless: Bluetooth Class 1, range up to approx. 100 m (line of sight)
Scan type1D and 2D imager
Read range7.6 cm – 21.4 m (depending on barcode size and type)
Image sensor1280 × 960 pixels
Aiming655 nm laser aiming
Tilt tolerance±65°
1D barcodesCodabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, UPC/EAN
2D barcodesAztec, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR, MicroPDF417, PDF417, QR Code, TLC-39
Battery– (powered by cable)PowerPrecision+ Li-Ion, replaceable
Cradles–Standard cradle or forklift-mount cradle
Durability3 m drops onto concrete; 7,500 tumbles (1 m); IP65 and IP67
Operating temperature−30 °C … +50 °C−20 °C … +50 °C
Management123Scan, Scanner Management Service (SMS), Zebra DataCapture DNA

Source: Zebra DS3608-ER/DS3678-ER specifications. Final configuration depends on the model code.

Services and support

Optiscan is a long-term official partner of Zebra. We deliver scanners configured and ready to use, and our certified service centre handles maintenance and repairs.

See also: All barcode scanners → · Mobile computers → · Labels and ribbons →

Frequently asked questions about Zebra DS3608-ER and DS3678-ER

What is the difference between the DS3608-ER and DS3678-ER?

The DS3608-ER is a corded scanner (USB, RS-232, Keyboard Wedge, IBM 46xx). The DS3678-ER is cordless: it connects via Bluetooth with up to about 100 m range and runs on a PowerPrecision+ battery. Read range and durability are the same.

How far can the DS3608-ER / DS3678-ER read barcodes?

From 7.6 cm up to 21.4 m, depending on barcode size and type. This makes it suitable for reading labels on high racking locations straight from the forklift.

Can the scanner be mounted on a forklift?

Yes. The cordless DS3678-ER can be used with a forklift-mount cradle, and the corded DS3608-ER can be connected directly to the vehicle-mounted computer.

Does it work in freezers?

Yes. The corded model operates down to −30 °C and the cordless model down to −20 °C, and both are IP65 and IP67 sealed.

Does it read 2D codes such as QR and Data Matrix?

Yes. Both models read 1D barcodes and 2D codes including QR Code, Data Matrix, PDF417 and Aztec.

Request a quote for Zebra DS3608-ER or DS3678-ER

We deliver scanners configured for your systems, with certified service and installation from our own service centre.
